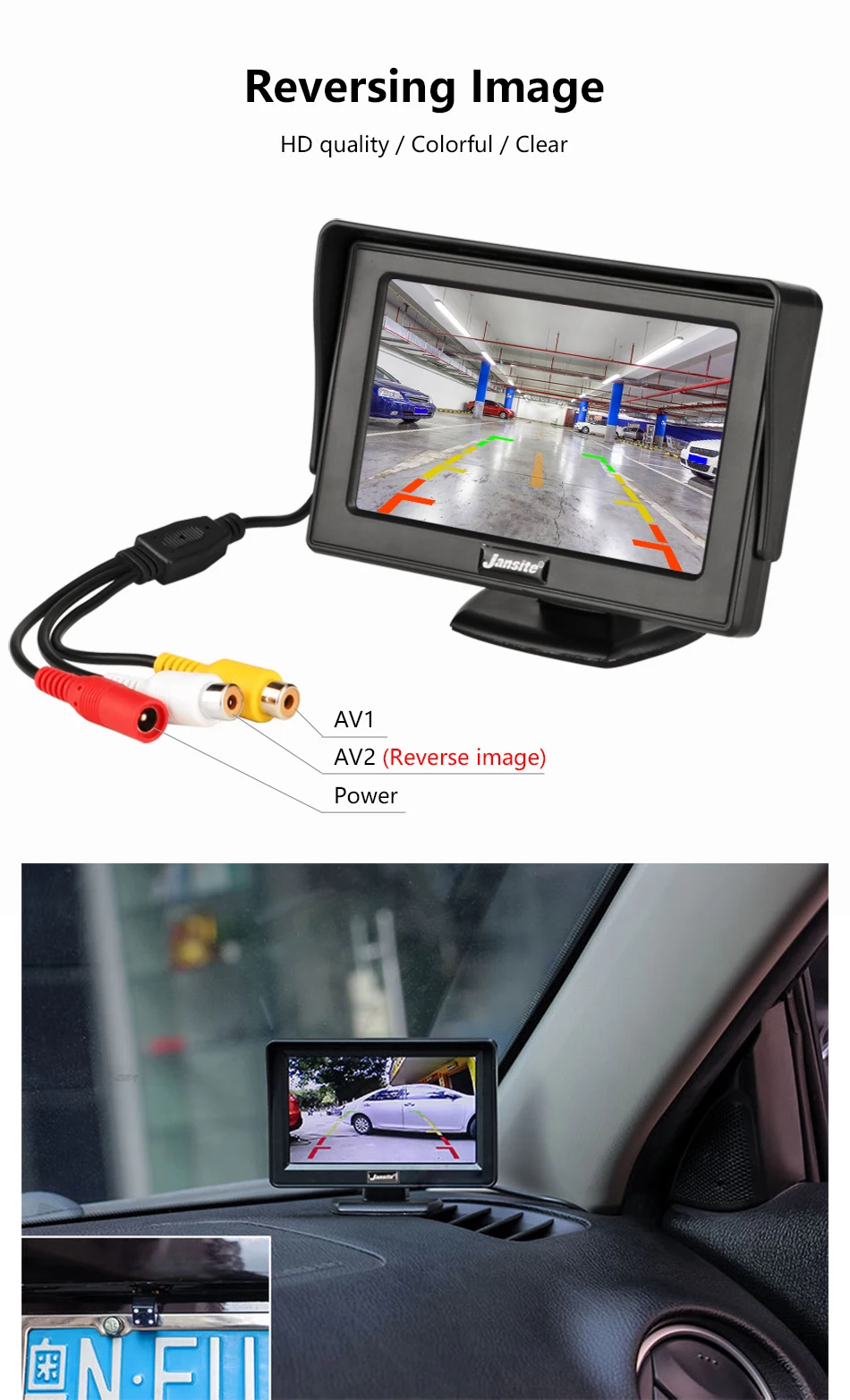

The display has two camera interfaces.
When the monitor is connected to two cameras, the camera connected to the red interface is displayed first,
and the other is triggered when the camera is reversed.
Under normal circumstances, the camera screen cannot be switched.
Includes 4 LED lights and supports night vision within 5 meters
CCD 3030 imaging sensor
Supports NTSC video systems
High-definition and wide viewing angle

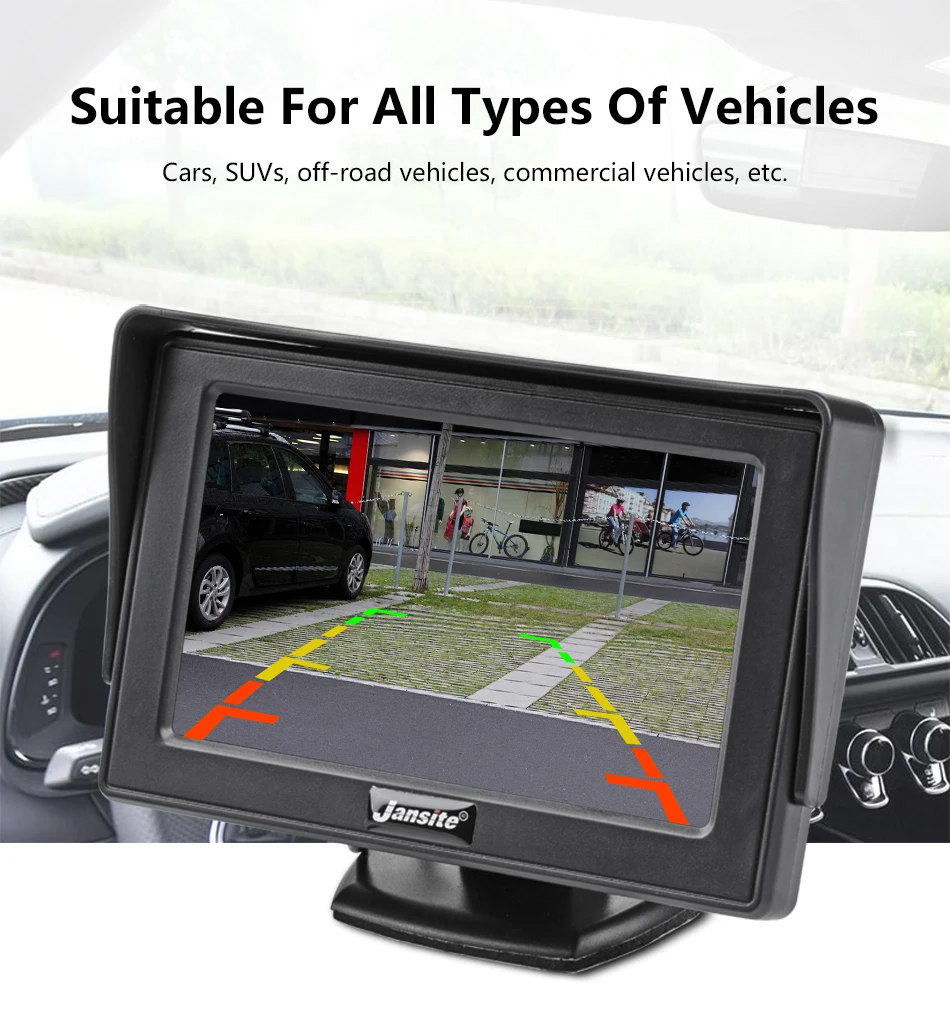

Applicable to variety of vehicles
You can install the monitor via mount holder or universal bracket
Rear View Monitor
Display Size: 4:3
Resolution: 480 x 272
Color Model: RGB
Video System: PAL/NTSC
Power Supply: DC 12V
Power Consumption: 2W
Effective pixels: 580X540
Image sensors: PC7070
Lens angle (Deg.): 170 degree
Minimum illumination: 1.5Lux / F1.2
S/N ratio: >48dB
Video output: RCA, 1.0VP - P. 75ohm
Working voltage: DC12V
Connectivity : Wire
Video format: PAL/NTSC
Working Power (DCV): 12V
Current consumption: 90mA Max
Directly placed in the car's central control position, small size does not occupy the place, do not block the line of sight and drive safely.
A is the rear camera, the power supply is connected to the positive and negative poles of the reverse lamp, the red is the positive pole, the black is the negative pole, B is the display, the red is connected to the ACC positive pole, and the black is connected to the ACC negative pole.
1 x 4.3 inch Monitor
1 x Video power cable
1 x Rear Camera(Optional)
1 x Wireless Receiver(Optional)
1 x Wireless Transmitter(Optional)
